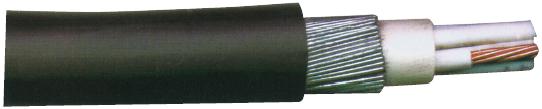

| NYRY |
|
|
|
|
|
|
| Application: Underground, indoor and outdoor installation, where resistance to high tensile or mechanical stress |
| is required. |
| Technical data: There is an armour of galvanized wires between inner covering and outer sheath against mechanical |
| stress. |
| Max. conductor temperature: 70°C |
| Rated voltage: 0.6/1kV |
|
|
|
|
|
|
| Rated |
Conductor |
Insulation |
Outer sheath |
Outer |
Weight |
| Crosssection |
Diameter |
Thickness |
Thickness |
Diameter |
approx. |
| (mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg/km) |
| 2x1.5 |
1.38 |
0.8 |
1.8 |
12.5 |
300 |
| 2x2.5 |
1.78 |
0.8 |
1.8 |
13.5 |
343 |
| 2x4 |
2.26 |
1 |
1.8 |
15.5 |
468 |
| 2x6 |
2.76 |
1 |
1.8 |
17.5 |
671 |
| 2x10 |
3.55 |
1 |
1.8 |
19 |
866 |
| 3x1.5 |
1.38 |
0.8 |
1.8 |
13 |
327 |
| 3x2.5 |
1.78 |
0.8 |
1.8 |
14 |
398 |
| 3x4 |
2.26 |
1 |
1.8 |
16.5 |
640 |
| 3x6 |
2.76 |
1 |
1.8 |
17.5 |
734 |
| 3x10 |
3.55 |
1 |
1.8 |
19.5 |
975 |
| 4x1.5 |
1.38 |
0.8 |
1.8 |
13.5 |
382 |
| 4x2.5 |
1.78 |
0.8 |
1.8 |
15 |
469 |
| 4x4 |
2.26 |
1 |
1.8 |
18 |
736 |
| 4x6 |
2.76 |
1 |
1.8 |
19 |
878 |
| 4x10 |
3.55 |
1 |
1.8 |
21.5 |
1150 |
