Flexible single core cables for internal wiring |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

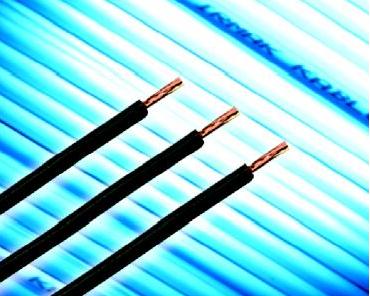

H05V-K |
|
|
|
|
|
|
| Conductor |
Insulation |
Outer Diameter |
Max. resistance |
Weight |
| Cross Section |
No. & Diameter |
Thickness |
min. |
max. |
at 20 °C |
approx. |
| (mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
(mΩ/m) |
(kg/km) |
| 0.5 |
16x0.19 |
0.6 |
2.1 |
2.5 |
39.0 |
8 |
| 0.75 |
24x0.19 |
0.6 |
2.2 |
2.7 |
26.0 |
12 |
| 1 |
32x0.19 |
0.6 |
2.4 |
2.8 |
19.5 |
15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

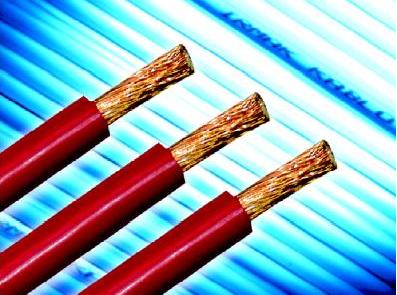

H07V-K |
|
|
|
|
|
|
| Conductor |
Insulation |
Outer Diameter |
Max. resistance |
Weight |
| Cross Section |
No. & Diameter |
Thickness |
min. |
max. |
at 20 °C |
approx. |
| (mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
(mΩ/m) |
(kg/km) |
| 1.5 |
27x0.25 |
0.7 |
2.8 |
3.4 |
13.30 |
20 |
| 2.5 |
45x0.25 |
0.8 |
3.4 |
4.1 |
7.98 |
32 |
|
4 |
56x0.29 |
0.8 |
3.9 |
4.8 |
4.95 |
51 |
|
6 |
84x0.29 |
0.8 |
4.4 |
5.3 |
3.30 |
75 |
|
10 |
80x0.39 |
1.0 |
5.7 |
6.8 |
1.91 |
127 |
|
16 |
126x0.39 |
1.0 |
6.7 |
8.1 |
1.21 |
185 |
|
25 |
200x0.39 |
1.2 |
8.4 |
10.2 |
0.78 |
300 |
|
35 |
280x0.39 |
1.2 |
9.7 |
11.7 |
0.554 |
440 |
|
50 |
400x0.39 |
1.4 |
11.5 |
13.9 |
0.386 |
590 |
|
70 |
560x0.39 |
1.4 |
13.2 |
16.0 |
0.272 |
830 |
|
95 |
760x0.39 |
1.6 |
15.1 |
18.2 |
0.206 |
1100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Description |
|
Applications |
|
|
|
- Flexible copper conductor |
- For internal wiring in electrical equipment |
|
- Color-coded PVC insulation |
where small bending radius is required. |
|
- Rated Temperature: 70°C |
|
|
- Rated Voltage: |
|
|
H05V-K: 300V / 500V |
|
|
H07V-K: 450V / 750V |
|
|
|
|
